Murata HSC is the lowest-profile RF coaxial connector.  MHSC is with miniaturization and high-frequency characteristics. It is popular in the mobile terminals and wireless communication portable devices.

Murata HSC RF coaxial connector key features

1. Easy engagement and disengagement.  New mating mechanical design makes stable felling connection.

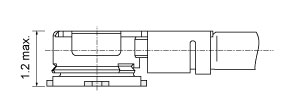

2. Small and low profile is suitable for low profile design. The mating height is only 1.2mm maximum.
3. High performance with wide frequency range (DC to 6GHz).
4. Flexible coaxial cable assembly with soft and ultra thin 0.81mm diameter coaxial cable.
5. SMT mounting receptacle by 2x2x0.6mm size to save space.

Murata HSC RF coaxial connector PNs
MHSC cable connector plug: MXHP32HP0960 (Compatible to IPEX MHF4 20448-001R-081)
MHSC SMT connector receptacle: MM4829-2702RB0 (Compatible to IPEX MHF4 20449-001E)

Murata HSC RF coaxial connector specifications
Frequency Range: DC up to 6GHz (VSWR: 1.3 max up to 3GHz ; 1.45 max. from 3GHz~6GHz)

1. Characteristic Impedance: 50 ohm
2. Temperature: -40℃ to +85℃
3. Contact Resistance: 20m ohm max.(Conductor) and 20m ohm max.(Ground)
4. Voltage rating: 250V r.m.s. maximum
5. Insulation Resistance: 500M ohm Minimum
6. Mating durability: 30 cycles (engage and disengage in vertical direction)

Murata HSC RF coaxial connector applications
Portable telephone, cordless telephone(analog and digital), GPS and other microwave radio and measurement equipment.

Murata HSC coaxial connector is compatible to IPX/IPEX connector MHF4 series.

Murata HSC VS I-PEX MHF4

Item	Murata HSC	I-PEX MHF4
Male PN	MXHP32	20448-001R-081
Receptacle PN	MM4829-2702	20449-001E
Plating	Silver	Gold
Performance	0~6GHz (VSWR: 1.4 max)	0~6GHz (VSWR: 1.4 max)
Delivery	6~8 weeks	7 days
Unit Price	High	Competitive
