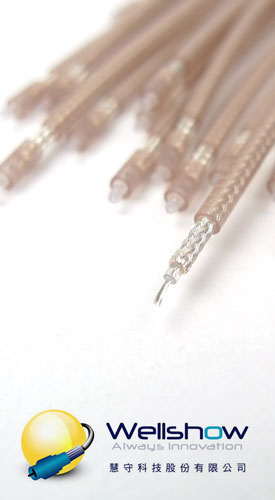

RG178 Coaxial Cable

Model Name: D1780115AS

Specification

• Conductor: Diameter 0.31mm, #30AWG, 7/1.02, Silver-Coated Copper Clad Steel
• Dielectric: Diameter: 0.86mm, FEP
• Outer conductor: 16/3/0.092, Coverage 92.7 %, Silver-Coated Copper
• Jacket: Diameter: 1.8mm, FEP, Color: Brown
• Nom. Impedance: 50 Ohms
• Nom. Capacitance: 95.8 pF/m
• VSWR (0 – 6 GHZ): Max 1.3
• Dielectric strength: AC 1.0 KV for 1 minute

Attenuation (dB/100m)	1.0GHz	1.8GHz	2.4GHz	5.2GHz	6.0GHz
	180	260	290	450	490



Product Application

GPS Antenna, RF Connector, Cable Assembly
