IPEX/IPX MHF4 RF coaxial connector is the smallest mini RF connector in the world.  Only 1.2mm low profile, MHF4 IPEX/IPX connector provides good working performance in various application of Wireless LAN.

IPEX MHF4 RF coaxial connector key features

1. SMT type coaxial receptacle and Mating plug cable connector

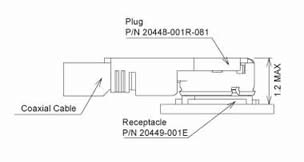

2. Small form factor and low profile 1.2mm Max. Mating Height
3. Applicable cable: 0.81mm RF coaxial cable
4. High productivity: Easy cable termination by “i-Fit” without soldering
5. Application Technology: IEEE802.11 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless

IPEX/IPX MHF4 RF coaxial connector PNs

MHF4 cable connector plug: 20448-001R-081 (Compatible to Murata HSC MXHP32)
MHF4 SMT connector plug: 20462-001E
MHF4 SMT connector receptacle: 20449-001E (Compatible to Murata HSC MM4829-2702)

IPEX/IPX MHF4 RF coaxial connector specifications

Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.4 max. at 3~6GHz)

1. Characteristic Impedance: 50 ohm
2. Temperature: -40℃ to +90℃
3. Rated Voltage: AC 60V
4. Contact Resistance: 20m ohm max.(Signal) and 10m ohm max.(Ground)
5. Withstand Voltage: AC 200V
6. Insulation Resistance: 500M ohm Min./DC 100V

IPEX/IPX MHF4 RF coaxial connector material

1. Ground contact: Phosphor bronze with gold over nickel plating
2. Housing: PBT, Black UL94V-0
3. Center contact: Phosphor bronze with gold over nickel plating

IPEX/IPX MHF4 coaxial connector is compatible to Murata connector MHSC MXHP32 series.
Having same working performance, but IPEX/IPX has great advantage in cost and delivery.

You can get IPEX/IPX MHF4 coaxial cable and MHF4 female connector in 7 days from Wellshow!

• I-PEX MHF4 Specification
• I-PEX MHF4 Plug Drawing
• I-PEX MHF4 Receptacle Drawing

Murata HSC VS I-PEX MHF4

Item	Murata HSC	I-PEX MHF4
Male PN	MXHP32	20448-001R-081
Receptacle PN	MM4829-2702	20449-001E
Plating	Silver	Gold
Performance	0~6GHz (VSWR: 1.4 max)	0~6GHz (VSWR: 1.4 max)
Delivery	6~8 weeks	7 days
Unit Price	High	Competitive
