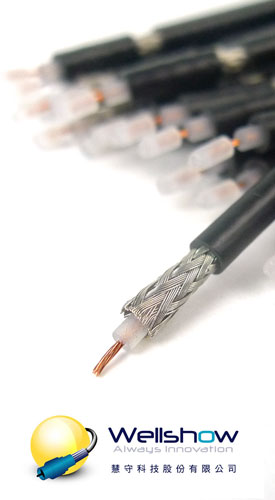

RG174 Coaxial Cable

Model Name: D1740165BT

Specification

• Conductor: Diameter 0.48mm, #26AWG, 7/0.16, Silver plated annealed copper wire
• Dielectric: Diameter: 1.55mm, XLPE
• Outer conductor: 16/5/0.1, Tinned annealed copper wire
• Jacket: Diameter: 2.7mm, PVC, Color: Black
• Voltage: 30V

  Attenuation	100MHz	400MHz	1GHz	3GHz
  dB/1000m	359	655	1175	2103
  dB/1000ft	109.50	199.78	358.38	641.42

Product Application

GPS Antenna, RF Connector, Cable Assembly
