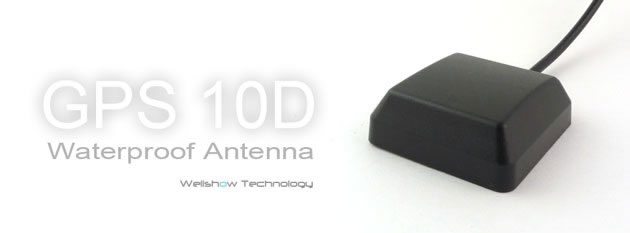

GPS Antenna Waterproof IP67 - AP001

External GPS waterproof antenna

GPS Antenna Introduction

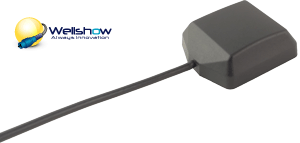

Wellshow’s high quality external GPS antenna will unleash and power various GPS receiver.  Just mounting magnetically to the roof of vehicle and connecting it with the GPS receiver antenna jack, you can maintain the best possible accuracy by having a lock on the greatest number of satellite.

Waterproof IP67

Wellshows's GPS AntennaA 100% waterproof design, small size and light weight external GPS antenna is portable and can reinforces your GPS receiver when you are in urban canyon downtown, hike under heavy tree covered,  and when your vehicle is in high speed motion.

Outdoor Antenna

Anywhere your GPS receiver can’t face upward the sky or can’t have a good view of the sky, you need a high quality, 100% waterproof, high accurate satellite signal, easy installation outdoor external GPS antenna!

SMA, SMB, MMCX, MCX, RF Connector

Custom Antenna Cable, RF Connectors

RoHS, UKAS, EQA compliantA wild range of RF Connectors like SMA, SMB, MMCX, MCX are available for connecting with various GPS receiver antenna jacks.  Choose suitable cable length and connector type external GPS antenna from Wellshow Technology, you will arrive your destination easily and quickly.

Design in Taiwan, Made in Taiwan, 100% VNA testing, RoHS compliant, Outdoor use, Accurate signal receiving, Easy installation, Heavy magnetic, Light weight, Small size are the reason you shall choose Wellshow external GPS Antenna.

If you need more information about GPS Antenna, please feel free and don’t hesitate to contact us. Don’t hesitate to send your inquiry to Wellshow, let’s start our good business relationship.

Send email to sales@wellshow.com.tw for more information.

Please visit our new website for full listing of Antenna.

Specifications

Part Number: AP001 GPS Antenna Drawing

Mechanical

  • Cable Type: RG174
  • Cable Length: 3M, 5M
  • Mounting: Method Magnet
  • Connector Type: SMA, SMB, MCX,…etc
  • Color: Black

Electrical

  • Center Frequency: 1575.42±1.023 MHz
  • Bandwidth (10dB return loss): 10 MHz
  • Gain at Zenith: 5.0 dBic typ.
  • Gain at 10° elecvation: -1.0 dBic min.
  • Polarization: R.H.C.P
  • Impedance: 50 ohm
  • Axial Ratio: 1.0 dB typ.
LNA Performance
  • Center Frequency: 1575.42±1.023 MHz
  • Gain: 27 dB typ.
  • Noise Fiqure: 1.5 dB typ.
  • Filter Out Band Attenuation: Dielectric
  • Output VSWR: 2.0 max
  • Voltage: 5.0V 22mA max.; 3.3V 15mA max.
