RF Connectors SSMB Female/Jack Straight PCB Mount Type
SSMB Female Straight Connector PCB Mount Type

SSMB Female PCB Mount Type

Impedence: 50 ohm

Meachanical mating: snap-on coupling

Frequency: DC ~ 3GHz

Body: Brass/Gold or Nickel Plating

Insulator: Teflon

Pin: Brass/Gold Plating

.......

More Information, Coming Soon......

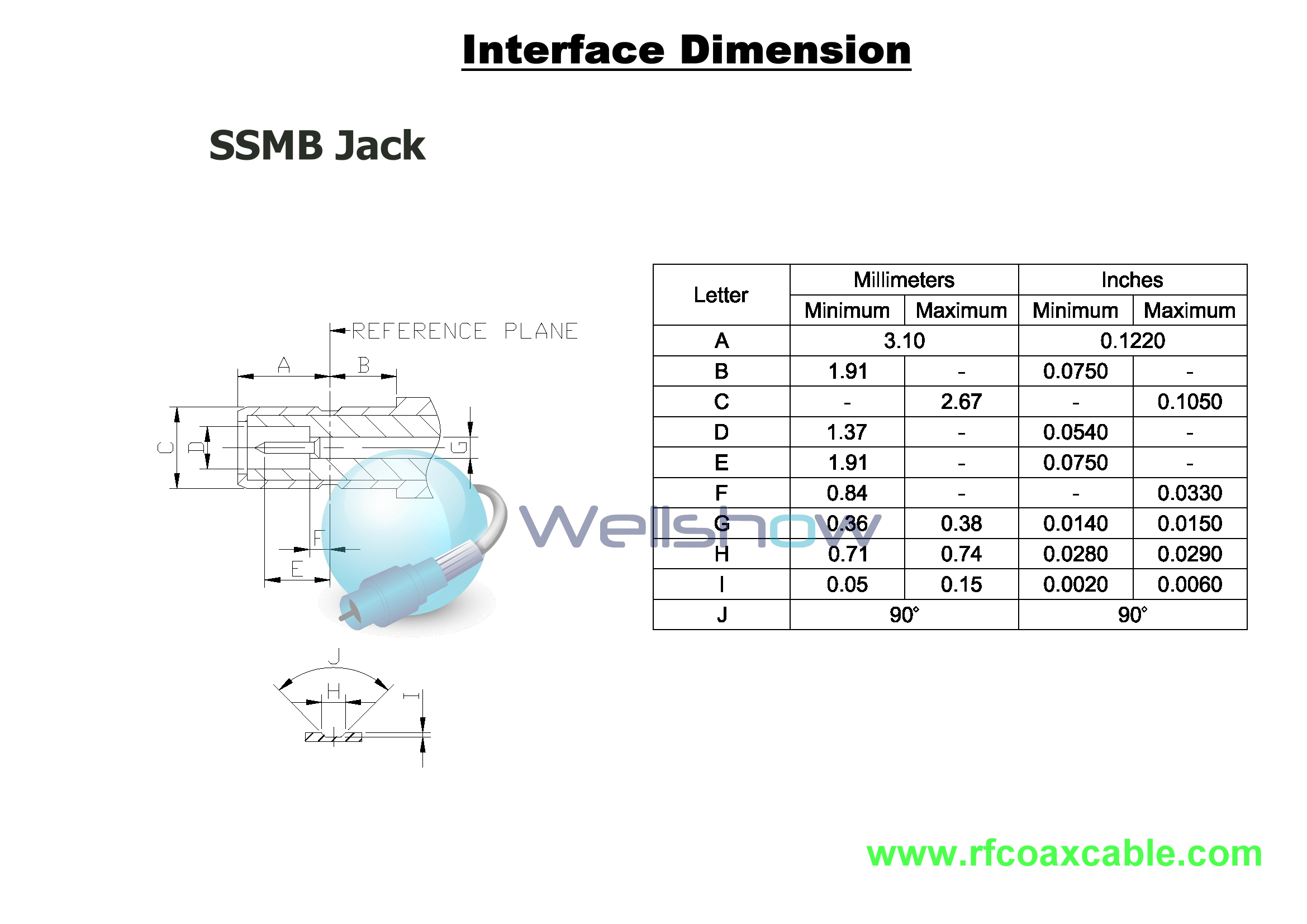

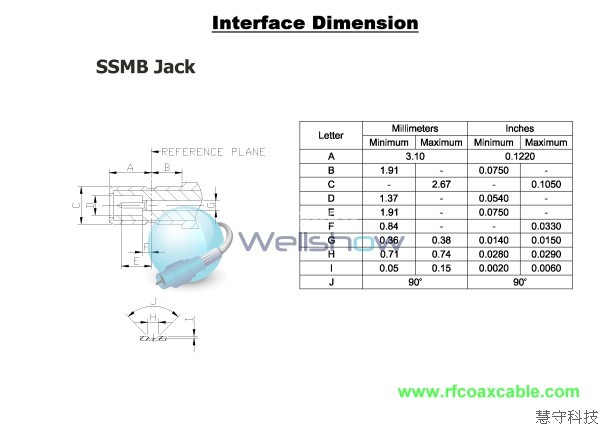

SSMB Interface Dimension

More Information, Comming Soone

[...Download Interface Dimension PNG 2339x1654]

SSMB series provides excellent electrical performance in a microminiature footprint. While the snap-on mating interface allows quick installation and dense packaging, the excellent electrical performance of the SSMB series allows it to be used in many applications as an alternative to large connectors like SMAs.

Applications: Cable Assemblies, Telecom, Components, PC/LAN, instrumentation, Process Controls, ...etc.
