RF Connectors BNC Male/Plug Straight Connector Crimp Type for Coaxial Cable
RF Connectors BNC Male Crimp Type

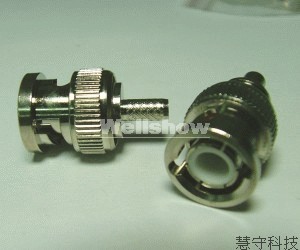

BNC Male Straight Crimp Type

Impedence: 50 ohm and 75 ohm

Meachanical mating: bayonet coupling

Frequency: DC ~ 4GHz (50 ohm)

Frequency: DC ~ 1GHz (75 ohm)

Body: Brass, Zinc Alloy/Nickel Plating

Shell: Brass, Zinc Alloy/Nickel Plating

Insulator: Delrin, Teflon

Pin: Brass/Gold Platin

Cable: RG179, RG174, RG59, RG58, RG142, RG400,

RG223, RG213, RG214, 2.5C2V, 3C2V, RG6

.......

More Information, Coming Soon......

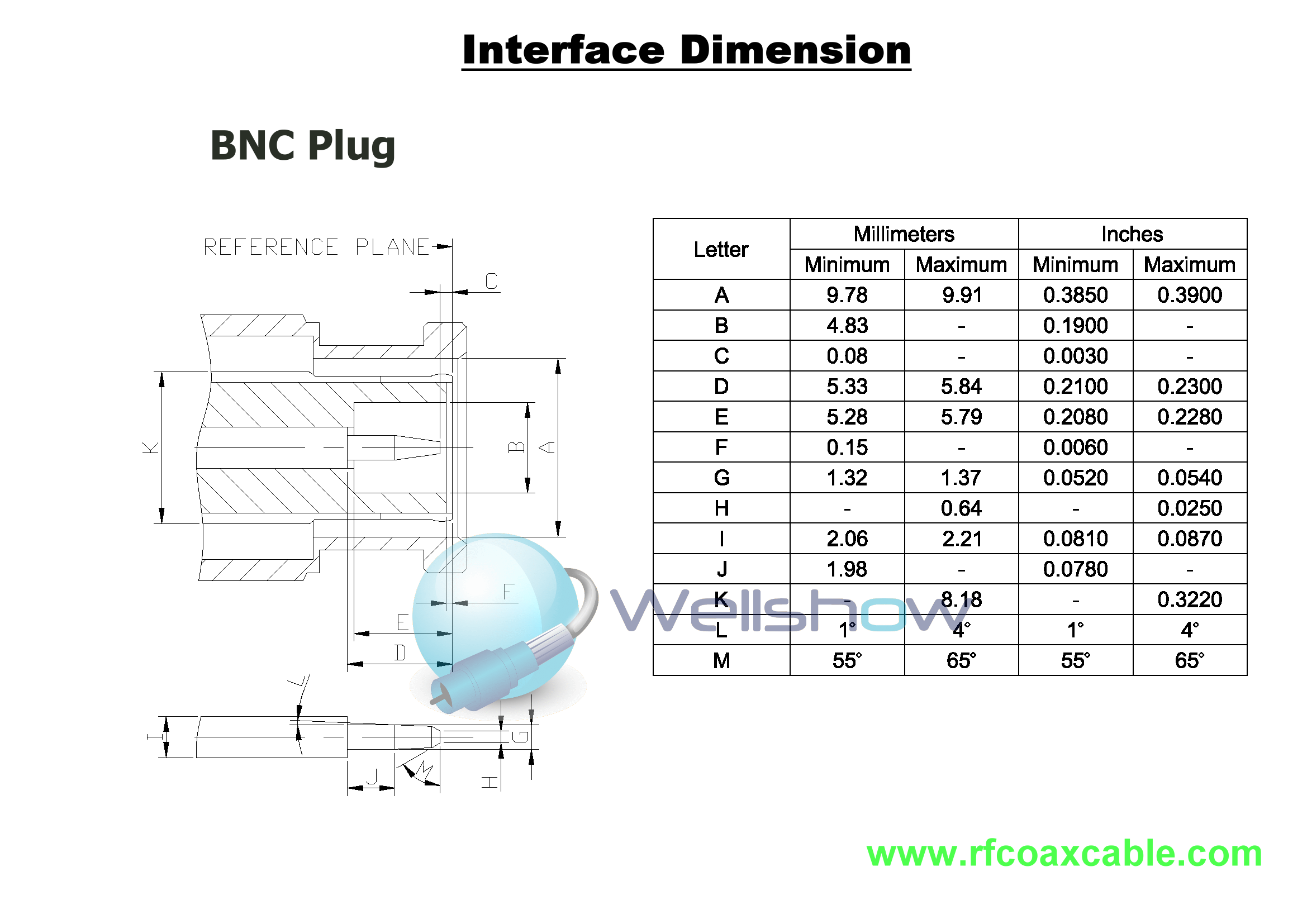

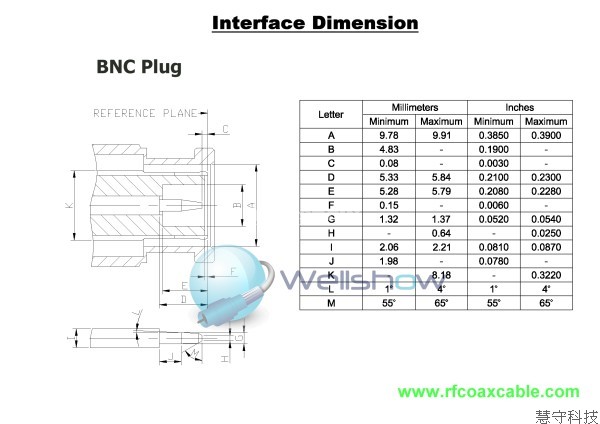

BNC Interface Dimension

More Information, Comming Soone

[...Download Interface Dimension PNG 2339x1654]

50ohm BNC connectors are miniature, lightweight units designed to operate up to 11 GHz and typically yield low reflection through 4 GHz. The two-stud bayonet lock coupling provides ease of connecting and disconnecting and cable terminations are available in crimp, clamp, solder, twist on and PCB type.

These connectors can be used in a variety of applications where true 75ohm performance is needed to insure low signal distortion, like CATV and CCTV. applications.

Applications: Antenna, Automotive, Base Stations, Broadcast, Components, Instrumentation, Medical Equipment, Telecom, Surge Protection, ... etc.
